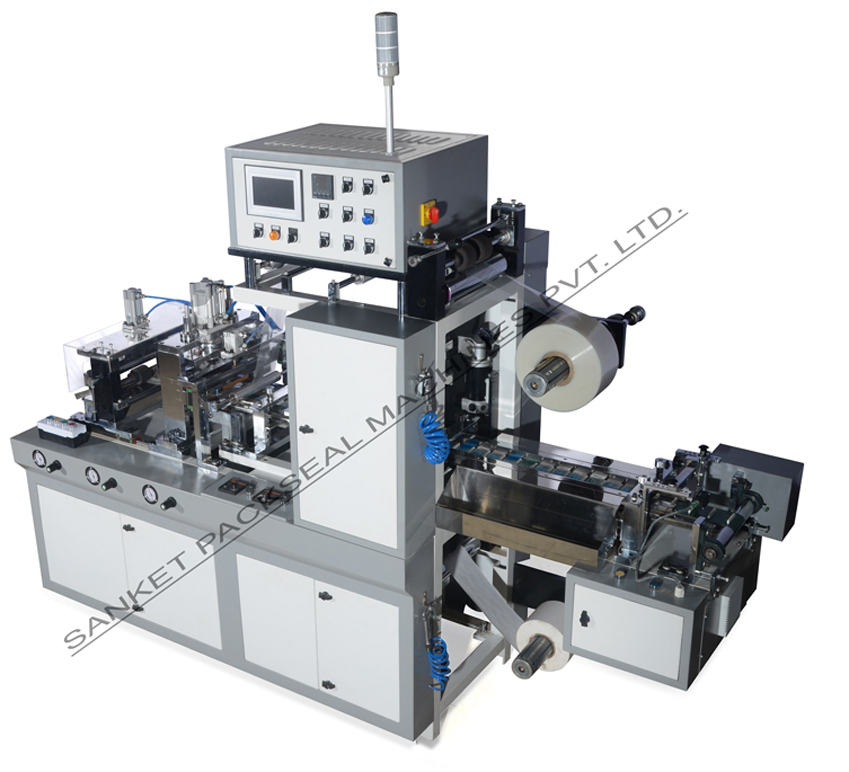

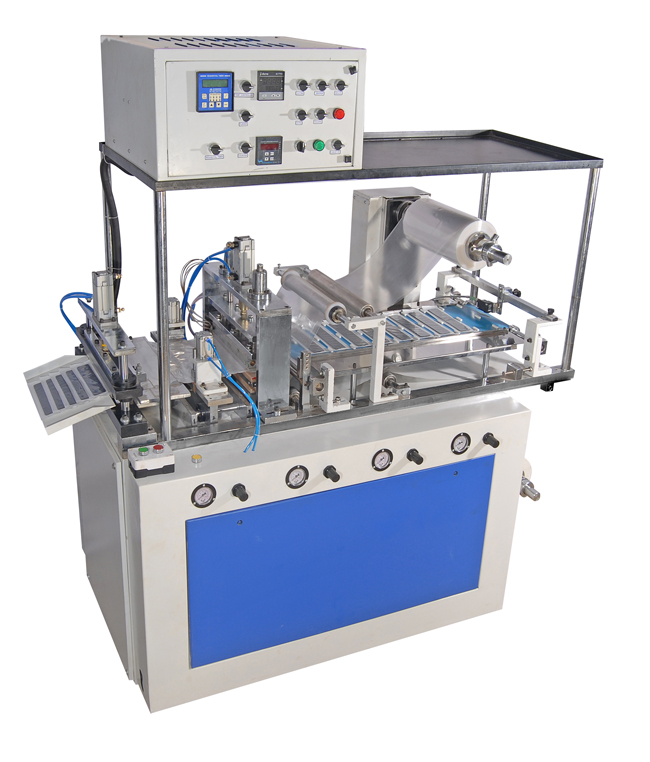

| TECHNICAL SPECIFICATION SUTURE PACKING MACHINE-OUTER |
||
| 1.NUMBER OF STATION (SEALING) | : | ONE |
| 2. NUMBER OF STATION(PUNCH) | : | ONE * VERTICAL |
| 3. MINIMUM WEB WIDTH | : | 80 MM |
| 4. MAXIMUMM WEB WIDTH | : | 160 MM |
| 5. MACHINE LENGTH | : | 1650 MM (APROX) |
| 6. MACHINE WIDTH | : | 750 MM |
| 7. MACHINE HEIGTH | : | 1650 MM |
| 8. MAXIMUM MACHINE SEEPD | : | 25-40 PCS/MIN. |
| 11. MAIN DRIVE | : | ONE COMMON MOTOR |
| 12. UNWIND DRIVE | : | SYNCHRONISED TO MAIN DRIVE |
| 13. CUTTING FUNCTION * | : | PNEUMATIC* |
| 14. SEALER FUNCTION | : | PNEUMATIC SYSTEM |
| 15. MACHINE COLOR | : | SWAN WHITE & VIP BLUE |
| 16. WEIGTH OF MACHINE | : | 800 KGS. (APROX) |
| 17. SYNCRONOCY MOTOR | : | PANASONIC OR SRIJAN |
| 18. UNWIND MOTOR | : | 0.25 HP. (02 NOS.) |
| 19. ELECTRICAL LOAD | : | 3.5 KW. |
| [ * ] Optional Attachment | ||
| [ We reserved rights to change any Technical Specification without prior notice. The Arrangement of
compressor must be ready from your side. The Price dose not include the compressor cost.] |
||
FEATURES
• Precise sealing for peal off
• Conveyor feed
• Easy operation
• High speed servo driven
• Double web top-bottom registration *
• High performance advance PLC control
• Touch screen interface for easy operation
• Web aligner system *
• Automatic tension control for unwinding side *
