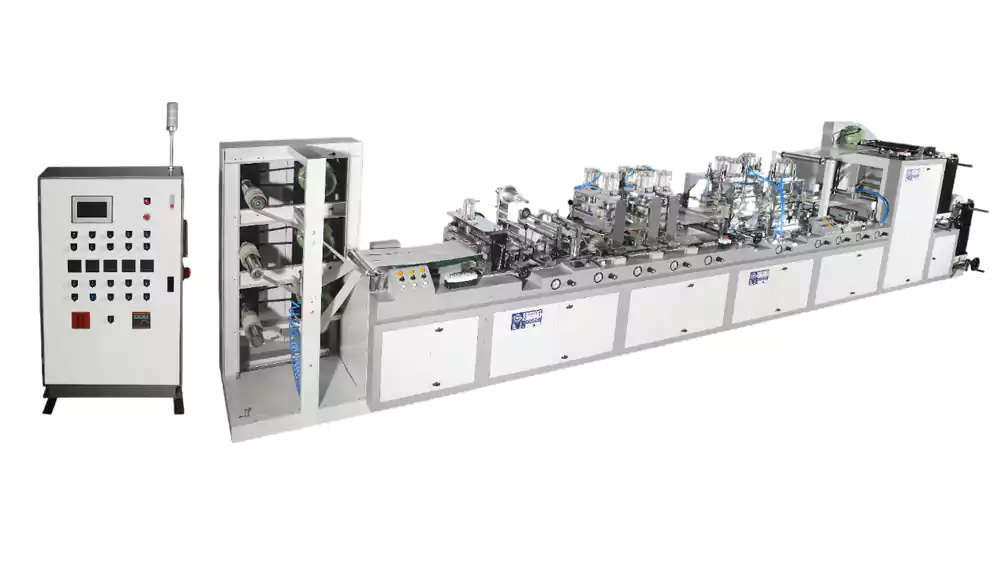

Surgical Pouch Machine

Surgical Pouch Machine





TECHNICAL SPECIFICATION
SURGICAL POUCH MACHINE-TYVAC
NUMBER OF STATION [ CUTTING ] ONE
NUMBER OF STATION [SEALING] TWO [SIDE SEALING]
NUMBER OF STATION [PUNCHING]* ONE- FOR THUMB NAIL*
NUMBER OF UNWINDER [FOR ROLL] TWO- FOR ROLL MOUNTING
NUMBER OF STATION [SEALING] ONE [BOTTOM]
MINIMUM ROLL WIDTH 50MM
MAXIMUM ROLL WIDTH 400 mm
MACHINE LENGTH 3500 MM
MACHINE WIDTH 990 MM
MACHINE HEIGHT 1870 MM
MAXIMUM MACHINE SPEED 30-80 POUCHES/MIN
MAIN DRIVE SERVO DRIVEN
UNWIND DRIVE SYNCHRONISED TO MAIN DRIVE
SEALER & PUNCHING FUNCTION PNEUMATIC
CUTTER FUNCTION PNEUMATIC
MACHINE COLOR VIP BLUE & SWAN WHITE
WEIGHT OF MACHINE 850 KGS [APPROX]
SERVO MOTOR 7.15 NM
UNWIND MOTOR 0.5 H.P.             02 NOS.
HEATING LOAD 4.0K.W.    [6 KW for Double *]
[ * ] Optional Attachment


FEATURES


• Three side seal system
• Double web system
• Hole punch system *
• High speed servo driven
• Precise sealing for peal off
• Self Seal Pouch Attachment *
• High performance advance PLC control
• Double web top-bottom registration *
• Touch screen interface for easy operation
• Automatic tension control for unwinding side *
• Automatize station moving system *
• Variable sealing area
• Multi-ups pouch *
• Perforation system *
• Gusset system *
• Web aligner system *
