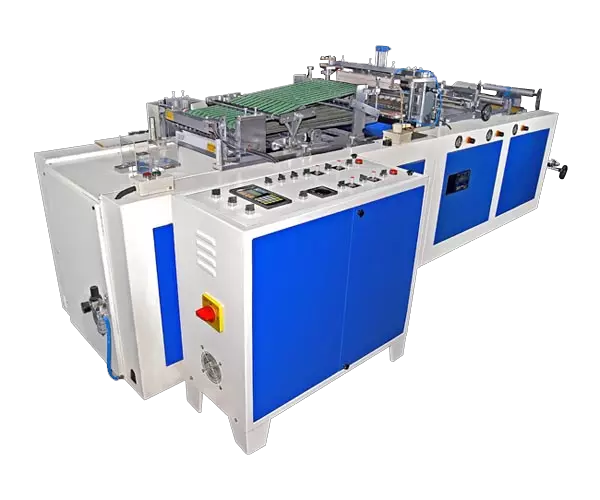

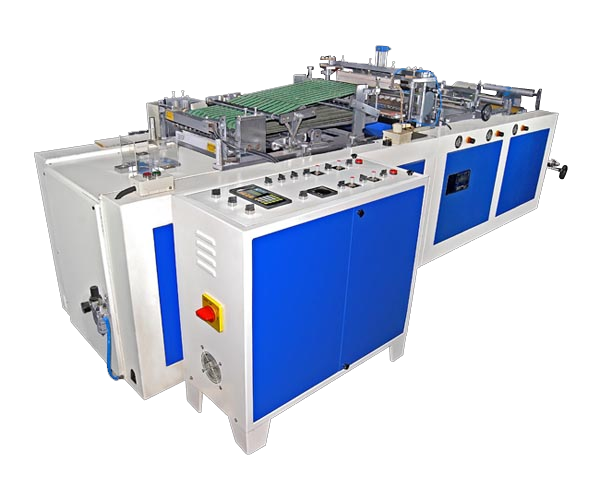

PVC Profile Pouch Machine
( 'U' Cut Machine )

PVC Profile Pouch Machine ('U' Cut MC.)





TECHNICAL SPECIFICATION
'U' CUT PVC POUCH MACHINE
MINIMUM WEB WIDTH 50 MM
MAXIMUM WEB WIDTH 305 MM
MINIMUM LABEL SIZE POUCH SIZE LENGTH 80 MM X WIDTH 50 MM 125MM X WIDTH 50MM
MAXIMUM POUCH SIZE 950 MM X 300MM
MAXIMUM WEB SIZE 300 MM
MAXIMUM MACHINE SPEED 90-100 PCS/MIN (FOR 200 MM LENGTH)
MAIN DRIVE ONE COMMON MOTOR With GEARBOX
UNWIND DRIVE SYNCHRONISED TO MAIN DRIVE
PERFORATION FUNCTION PNEUMATIC * OPTIONAL
CUTTER FUNCTION PNEUMATIC
MACHINE COLOR VIP BLUE & SWAN WHITE
WEIGHT OF MACHINE 1000 KGS. [APPROX]
MAIN MOTOR 2.0 HP.
SERVO MOTOR 7.15 NM/ 1500 WATT.
SEALING STN : ONE
CONVEYOR MOTOR (GEARED) 0.5 H.P. 01 NO.
U/W MOTOR (GEARED) 0.5 H.P. 01 NO.
HEATER 2.25 K.W.


FEATURES

• Servo driven high speed
• Precise sealing
• Integrated heating shape for various jobs
• Touch screen interface for easy operation
• High performance advance PLC control
