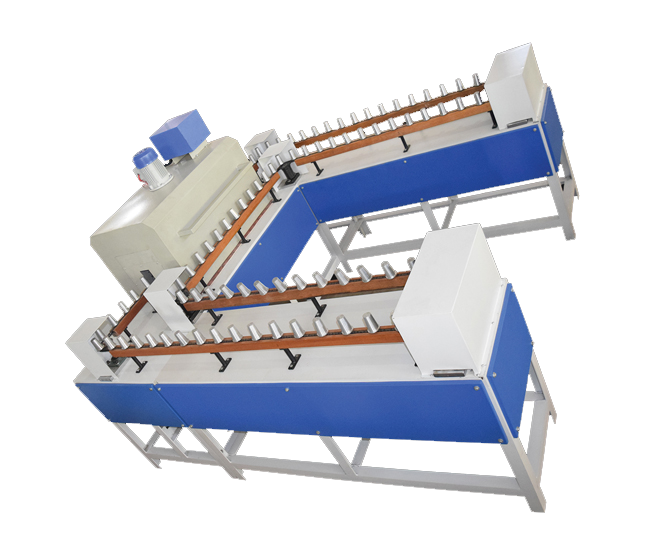

| TECHNICAL SPECIFICATION PRE FORM CAPS MACHINE |
||
| NUMBER OF STATION [TUNNEL] | ONE | |
| NUMBER OF CAPS MOULD | 70-80 NOS, [OPTIONAL] | |
| MINIMUM MOULD DIA | 20 MM | |
| MAXIMUM MOULD DIA | 80 MM | |
| MINIMUM MOULD HEIGHT | 20 MM [APROX] | |
| MAXIMUM MOULD HEIGHT | 150 MM [APROX] | |
| MAIN DRIVE | 1 HP. VFD. | |
| TUNNEL SIZE | 1200MM X 600MM X 700 MM | |
| FILLING APPLICATION | MANUAL | |
| CAP RELEASE FUNCTION | MANUAL | |
| MACHINE COLOR | VIP BLUE & SWAN WHITE | |
| WEIGHT OF MACHINE | 1100 Kgs. [Aprox. ] | |
| MAIN MOTOR | 1.0 H.P. | |
| HEATER LOAD | 6-9 KW. | |
| BLOWER | 0.5 H.P. | |
| ELECTRICAL LOAD | 7-10 KW. | |
| TEMP. CONTROLLER | PID- DIGITAL | |
| [ * ] Optional Attachment |
||
